Aventon Soltera 3 ADV Commuter Electric Bike

Soltera 3 ADV ships as a Class 1 ebike and is not throttle compatible. This bike is equipped with a Gates Belt Drive system that eliminates issues such as chain stretch and usual wear. Belt drive systems typically last 2-3 times as long as traditional chains and cogs. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof - Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components. *Max range determined using PAS Eco on flat terrain and a 160lb rider.

WEIGHT

37lbs

TOTAL WEIGHT LIMIT

300 lbs

RIDER HEIGHT

S 5'1"-5'5", M 5'5"-5'9", L 5'9"-6'1", XL 5'1"-6'4"

WATER RESISTANCE

IPX6

RANGE

Up to 70 Miles

BIKE SAFETY CERTIFICATIONS

TUV Certified

BATTERY SAFETY CERTIFICATIONS

TUV Certified

IDEAL USE

Urban Riding

FRAMESET

FRAME

6061 Double-Butted Aluminum Alloy with Internal Battery

FORK

Rigid Aluminum Fork

REAR SPACING

142mm

FORK SPACING

100mm

FRAME STYLE

Step-Over

WHEELSET

FRONT WHEEL

700c, 32-spoke, Double Wall Aluminum Rim, Thru Axle

REAR WHEEL

700c, 36-spoke, Double Wall Aluminum Rim, Nutted Hub Drive Motor

TIRES

Kenda K1085 700x38C

EBIKE SYSTEM

SPEED

Class 1

MOTOR

36v, 250W

MOTOR TORQUE

40Nm

DISPLAY

Aventon BC147

BATTERY

Integrated Lithium-ion 36.9V, 9.94Ah, 366.8Wh

BATTERY WEIGHT

4.2lbs

CONTROLLER

36v 15A

THROTTLE

N/A

SENSORS

Double Sided Bottom Bracket Torque Sensor

CHARGER

36V Output: 42V/ 4A

CHARGING TIME FROM 0% TO 100%

3-4 hours

LIGHTS

Front and Rear Lights Integrated w/ Turn Signals

BRAKES

FRONT BRAKE

Tektro HD-T3020 Hydraulic Disc Brake (w/o e-cutoff)

REAR BRAKE

Tektro HD-T3020 Hydraulic Disc Brake (w/o e-cutoff)

FRONT BRAKE ROTOR

Tektro 180mm 6 bolt

REAR BRAKE ROTOR

Tektro 180mm 6 bolt

DRIVETRAIN

DRIVETRAIN

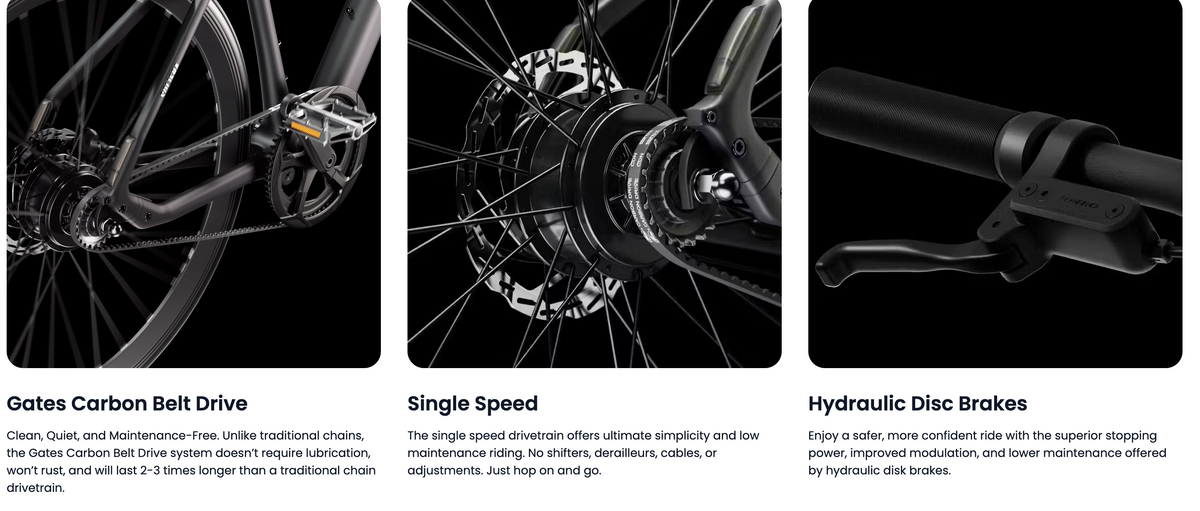

Single Speed, Gates Carbon Belt Drive

CHAINRING

60T

HUB FLYWHEEL

22T

BELT

Gates Carbon Belt Drive 122T CDN

CHAINRING BCD

130

CRANKSET

3pc, 165mm crank arm

BOTTOM BRACKET

Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

PEDALS

9/16" Composite Platform

COCKPIT

SADDLE

Aventon Saddle

SEATPOST

Aventon 27.2

SEATPOST CLAMP

31.8mm

HANDLEBARS

Aluminum 31.8mm, 680mm

STEM

31.8mm, 70mm Length, 15°

GRIPS

Aventon Lock on grips

HEADSET

Aventon headset with integrated cable routing

INCLUDED ACCESSORIES

KICKSTAND

Included in accessory box
