Description
tarper HR1500H Tuff Tarper – Kym IndustriesPioneer HR1500H Tuff Tarper with Hydraulic Gantry The Tuff Tarper systems are designed for single axle cable hoist and hooklift trucks. These systems can cover open top, fixed height containers ranging from 8' to 16'. The HR1500HS is a hydraulic tarp system for single axle hook lift trucks which features: A Direct Drive Hydraulic Motor for quiet, smooth and steady movement An Adjustable Roller Assembly mounted on a Hydraulic Gantry with a Vertical

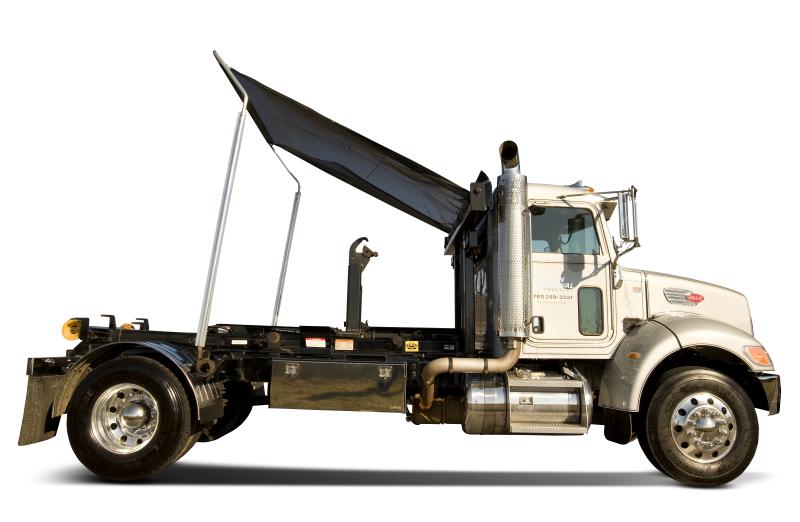

Pioneer HR1500H Tuff-Tarper with Hydraulic Gantry
The Tuff-Tarper systems are designed for single axle cable hoist and hooklift trucks. These systems can cover open-top, fixed height containers ranging from 8' to 16'. The HR1500HS is a hydraulic tarp system for single axle hook lift trucks which features:
- A Direct Drive Hydraulic Motor for quiet, smooth and steady movement
- An Adjustable Roller Assembly mounted on a Hydraulic Gantry with a Vertical range of 60" to 96"
- Uses your truck's pre-existing hydraulic system
- This unit comes with Reinforced STEEL Side Mounted Pivot Arms
- Heavy Duty Reverse Wound Torsion Springs assist pivot arm movement in deployment
- For driver's safety, a flow diverter and control valve help to operate the roller at lower pressures
- Easy Installation
- Low maintenance
Comes with Heavy Duty Tarp
The Tuff-Tarper Advantage
The HR1500HS uses your pre-existing hydraulic system and is powered by a right angle hydraulic direct-drive motor/gearbox combo. As the tarp is deployed, the hydraulic motor unwinds the cover from the roller while the torsion-spring powered pivot arms move to cover the load. These units come standard with a 9' wide expandable Heavy Duty Mesh Tarp.
Parts Included:
- Roll Pin (5/16" x 1 1/2")
- Arm Mounting Bracket
- Retaining Ring (Side Mount)
- Left and Right Side Base Arm (Side Mount)
- Upper Arm 9' 6" (Steel)
- 2 Straight Bow Corners
- Cover Spring
- Rear Section 9' (Steel)
- 90° ELL
- Clevis Pin with Cotter
- Roller Assembly
- Gantry Assembly
- -8 SAE M x -8 JIC F 90° ELL
- Flow Diverter at 5 GPM
- SAE M Plug
- Chassis Mounting Angle
- Gantry Cylinder 36" Lift
- Cover Control Valve ( 2 Spool)
- Hydraulic Hose (-6 x 9')
- Hydraulic Hose (-6 x 6')
- -6 SAE M x -6 JIC F 90° ELL
- -6 SAE M x -8 JIC M Straight Adapter and AN Adapter
